M/NC Series

Solid Arch Press

Category Description

Forming and Stamping Hydraulic Presses – R/NC Series: The R/NC Series hydraulic presses feature a robust solid-arch monoblock design, offering power capacities ranging from 80 to 500 tons. Perfect for stamping, die-cutting, and forming applications, these presses are built to withstand demanding tasks while ensuring precision and durability. With the ability to integrate into automated production lines, the R/NC Series delivers versatility and reliability, operating at hydraulic pressures below 320 BAR for extended system life.

Robust Design - S355JR Steel & High-Precision Tables

Solid-Arch Design with Precision-Machined Steel Tables: The R/NC Series presses are crafted from electro-welded S355JR steel, stabilized and machined to ensure parallelism and accuracy. Designed with finite element software, these presses consistently meet high-quality standards. The upper and lower tables, made from C45E steel with DIN-650 grooves, maintain perfect parallelism with the aid of four cylindrical side guides and maintenance-free bimetallic antifriction bushings.

Cylinder and Hydraulic Group

Efficient Hydraulic System for High Performance: The double-acting cylinder features a honed tube, chrome-plated piston, and wear-resistant guides for long-lasting reliability. The motorized hydraulic group operates at two speeds with an automatic disconnection system for fast-speed operations. A cylinder decompression valve enhances safety and control.

User-Friendly Electric Installation and Safety Measures

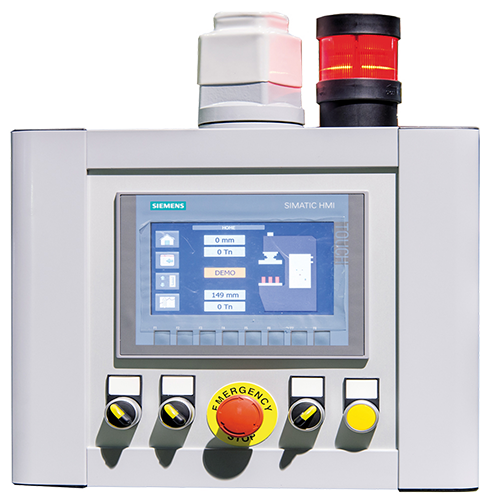

Advanced Safety and Programming Features: Equipped with a SIEMENS safety PLC (SIMATIC S7 1200) and a 4-inch MTP-400 touchscreen, the R/NC Series allows for programmable operation modes, power settings, and dwell times. With the capacity to store 99 recipes, these presses are highly customizable for various tasks. Safety features include Type 4 PLe photoelectric barriers, fixed side protections, and LED-lit polycarbonate windows. The press meets all CE safety standards and comes with an instruction manual.

Mechanical cylinder adjustment (80 and 100 tons only)
SIEMENS PLC mod. SIMATIC S7 1200 with 7″ touchscreen
High-speed operation via prefill valves and lateral cylinders
Hydraulic cushion
Hydraulic ejectors for upper, lower, or both tables
Cooling unit for hydraulic group
Control panel with articulated arm
Industry 4.0 compatibility
Router for remote access
Customized geometry for specific needs

Versatile Optional Accessories for Customized Applications

To cater to specific operational needs, the CM/NC series offers optional accessories such as increased vertical light up to 800 mm, extended piston strokes, hydraulic cushions, ejectors, cooling equipment for the hydraulic group, and Industry 4.0 integration capabilities. These options provide flexibility and adaptability for various industrial requirements

Technical Specification Chart

FEATURES	RM-80	RM-100	RM-150	RM-220	RM-300	RM-500
Power [t]	80	100	150	220	300	500
Motor Power [kW]	7.5	13	13	11	11	15
Working Speed [mm/s]	8	3–9	3–7	3.8	2.8	2.4
Approach Speed [mm/s]	34	40	28	17	13	10
Return Speed [mm/s]	48	60	40	30	19	17
Max Pressure [bar]	315	319	320	320	320	320
Piston Stroke [mm]	250	250	250	300	300	500
Tool Table [mm]	700 × 500	700 × 500	750 × 550	800×600	850 × 650	1000 × 850
Between Columns [mm]	600 × 450	600 × 450	650 × 500	700 × 550	750 × 600	900 × 800
Vertical Clearance [mm]	450	500	550	550	600	700
Total Height [mm]	2550	2675	2870	3095	3330	6490
Weight [kg]	2180	2540	3350	5000	7000	12150

Industry 4.0

Industry 4.0 represents the integration of advanced digital technologies, smart automation, and interconnected systems into manufacturing processes. At Press Machinery Company International, our presses are designed to support Industry 4.0 compatibility, ensuring seamless integration with smart factory environments. This innovation empowers businesses to achieve greater efficiency, precision, and adaptability in their operations.

Enables smart automation and real-time monitoring.
Supports seamless integration into Industry 4.0-ready production lines.
Features remote connection routers for enhanced diagnostics and updates.
Optimizes production efficiency through data-driven decision-making.
Ensures compatibility with modern industrial IoT (Internet of Things) systems.
