Designed with advanced features such as movable lower tables, tilting upper tables, and customizable T-slot fixation grooves, these presses offer unparalleled flexibility and control. Constructed from robust materials like chrome-plated C45E steel columns and oxy-cut, electro-welded monoblocks, they are capable of handling extreme forces while maintaining precision and reliability.
MV-800E/NC-SINCRO Hydraulic Press for Molds and Dies
The MV-800E/NC-SINCRO is a hydraulic press designed for the adjustment and testing of molds, dies, and tooling: This press features a robust structure capable of withstanding 600 TN of concentrated force and is equipped with advanced safety and precision systems to ensure optimal performance and durability. Compliant with CE safety and health regulations, it is tailored for demanding mold and die applications.
Key Highlights:
- Custom-designed for adjusting and testing molds, dies, and punches.
- Supports up to 600 TN of concentrated force.
- Four chrome-plated cylindrical columns with protective bellows, 250 mm in diameter.
- Hydraulic system operating at a maximum pressure of 250 Bar for prolonged reliability.
- Compliant with CE safety and health regulations.
Structural and Table Design:
Electrical Installation and Safety:
- Structure engineered to withstand 600 TN of concentrated force on 1/3 of its surface.
- Lower table with T-slots customized as per user specifications.
- Upper table with T-slots and an anti-fall safety system.
- Table dimensions: 3,000 x 2,000 mm.
- Supports 1 or 2-speed operation of the main cylinder advance.
- Manual cycle for step-by-step movements and automatic cycle for full production.
- Anti-fall safety system for the upper table.
- Front and rear optical barriers (1,000 mm, Level IV safety).
- Control panel with touchscreen display for data entry and calibration.
- Siemens components, compliant with CE regulations, with IP55 protection.
- Redundant self-controlled electrical and hydraulic safety systems.
Cylinder and Hydraulic Group:
- Two double-acting hydraulic cylinders, each with a capacity of 400 TN.
- Single-speed hydraulic group with pre-filling speed disconnection.
- Equipped with decompression systems and proportional pressure pre-filling valves.
- Digital potentiometers for displacement control and synchro-electronic system for balancing uncentered loads.
- Includes a glycerin manometer for tonnage readings.
Specifications:
Model: MV-800E/NC-SINCRO
Power [tn]: 800
Opening Force [tn]: 80
Powered Speeds: 1
Engine Power [kW]: 55 + 55
Auxiliary Motor Power [cv]: 75 + 75
Piston Stroke [mm]: 5.3
Fast Pre-Fill Speed [mm]: 1,000
Working Speed [mm/s]: 110
Return Speed [mm/s]: 6
Guide Diameter [mm]: 180
Maximum Pressure [Bar]: 250
Useful Table Area [mm]: 3,000 x 2,000
Lower Table Displacement [mm]: 3,500 x 2,000
Vertical Light [mm]: 3,100 x 1,300
Weight [kg]: 134,600

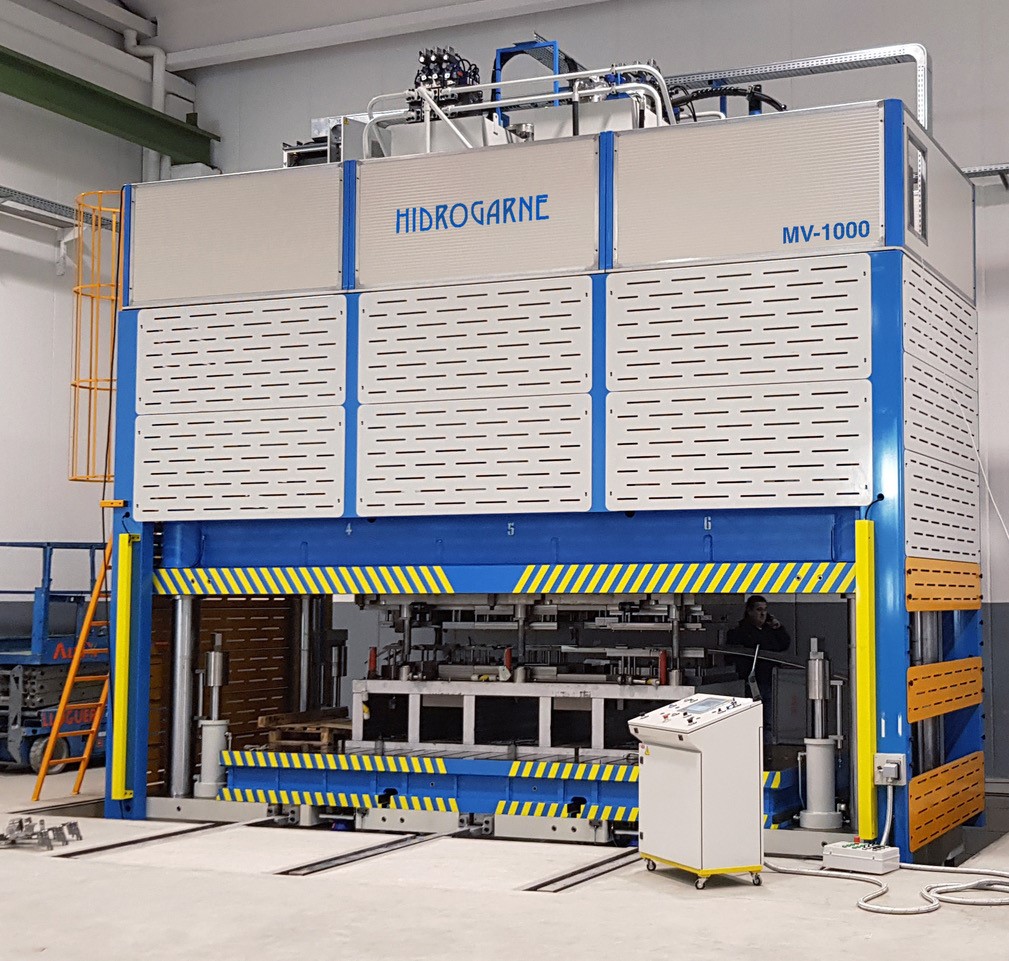

MV-1000E/NC-SINCRO Die Spotting Hydraulic Press
Structural Table and Design:
- Structure made of three electro-welded monoblocks from S355JR steel, stabilized and machined for precision.
- Upper table with T-slots and an anti-fall safety system.
- Useful table surface: 4,750 x 2,250 mm.
- Supports up to 600 TN of concentrated force on 1/3 of the surface.
- Lower table supports up to 50 TN, equipped with bronze guides and mechanical positioning centers.
Specifications:
Model: RM-150E/NC
Power [tn]: 150
Engine Power [kW]: 7.5
Working Speed [mm/s]: 3.9
Approach Speed [mm/s]: 20
Return Speed [mm/s]: 30
Maximum Pressure [Bar]: 305
Piston Stroke [mm]: 450
Guide Diameter [mm]: 50
Lower Table [mm]: 1,000 x 850
Upper Table [mm]: 900 x 800
Vertical Daylight [mm]: 800
Frontal Daylight [mm]: 1,250
Working Height [mm]: 950
Total Front [mm]: 2,585
Total Side [mm]: 1,470
Total Height [mm]: 3,610
The MV-1000E/NC-SINCRO Hydraulic Die Spotting Press is specifically designed for the precise adjustment of progressive dies. Featuring a tilting upper table and movable lower table, this press ensures perfect parallelism and minimal friction through high-mechanical-resistance chrome-plated columns and maintenance-free bimetallic bushings. Its robust hydraulic system, operating at a maximum pressure of 290 Bar, guarantees durability and reliable performance. This press complies with all CE safety and health requirements.
Key Highlights:
- Designed for progressive die adjustment with semi-automatic and automatic modes.
- Tilting upper table and movable lower table for precise operations.
- Columns with a diameter of 300 mm, chrome-plated and rectified for minimal friction.
- Optimized hydraulic system with a pressure below 290 Bar.
- Complies with CE safety and health regulations.
Electrical Installation and Safety:
- SIEMENS SIMATIC S7 1200 safety PLC with a 12” touchscreen for programming modes, power, travel, and dwell time.
- Storage for up to 300 programmable recipes.
- Low voltage operation via two-hand pushbutton.
- Anti-fall safety system with hydraulic safety jaws.
- Level IV photoelectric barriers at the front and rear.
- Lateral protections with safety microswitches.
Cylinder and Hydraulic Group
- Six single-acting cylinders with lapped sleeves and chrome-plated pistons.
- Four 50 TN hydraulic compensators for balancing forces on the lower table.
- 800-liter hydraulic group with a Denison silent pump and decompression system.
- Proportional pressure system with synchro-electronic control for off-center loads.
- Air-oil radiator for independent hydraulic group cooling.
- Glycerin manometer for tonnage readings.

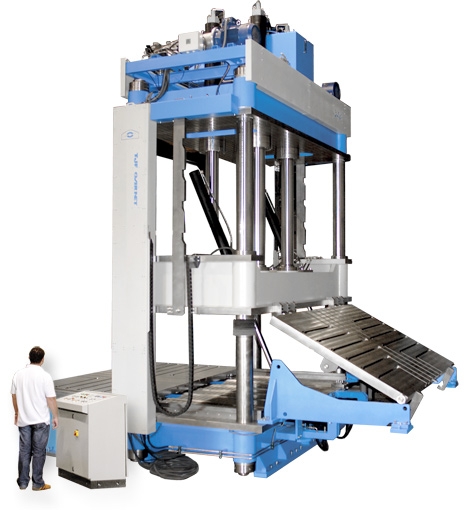

ML-300E/NC Hydraulic Press for Mold and Die Adjustment
The ML-300E/NC Hydraulic Die and Mould SpottingPress: A custom-designed for precise mold and die adjustment, featuring a movable lower table and a tilting upper table. Engineered with chrome-plated, rectified columns and an optimized hydraulic system operating below 320 Bar, it ensures exceptional reliability and durability. Fully compliant with CE safety and health regulations, this press is ideal for demanding industrial applications.
Key Highlights:
- Designed for mold and die adjustment with lower table ejection and upper table tilting.
- Chrome-plated cylindrical columns (200 mm diameter) with protective bellows.
- Optimized hydraulic system operating at a maximum pressure of 320 Bar.
- CE-compliant safety and health features.
- Programmable operating modes with storage for 300 recipes.
Structural and Table Design:
Electrical Installation and Safety:
- Structure made of four electro-welded and machined monoblocks from oxy-cut steel.
- Movable lower table with T-slot fixation grooves and bronze guides for precise positioning.
- Lower table supports up to 50 TN in displacement with mechanical positioning centers.
- Upper table tilts up to 110° and includes hydraulic safety pins to prevent falling.
- Tilting counter-table supports molds up to 35 TN during tilting, with ramp parking at 140°.
- SIEMENS SIMATIC S7 1200 safety PLC with a 7” MTP-700 touchscreen for programming modes, power, and travel.
- Supports manual and automatic cylinder operation with low-voltage two-hand pushbutton controls.
- Anti-fall safety system with rack and trigger for automatic closure during failures.
- Level IV photoelectric barriers at the front and rear, with lateral protections and safety microswitches.
- Gravity-drop pushbutton for safety during table positioning.
Cylinder and Hydraulic Group:
- Single-acting cylinders with lapped sleeves, chrome-plated pistons, and anti-wear guides.
- 400-liter hydraulic group with a Denison 1-speed silent pump.
- Automatic pre-fill speed disconnection and decompression system for working speed.
- Independent air-oil radiator unit for hydraulic cooling.
- Glycerin manometer for tonnage readings.
Specifications:
Model: ML-300E/NC
Power [tn]: 300
Engine Power [kW]: 20
Piston Stroke [mm]: 2,000
Approach Speed [mm/s]: 100
Working Speed [mm/s]: 8
Return Speed [mm/s]: 80
Guide Diameter [mm]: 200
Maximum Pressure [Bar]: 320
Useful Table Area [mm]: 3,000 x 1,800
Between Columns [mm]: 3,000 x 1,800
Vertical Light [mm]: 2,750
Working Height [mm]: 850
Total Height [mm]: 6,400
Weight [kg]: 57,000
Why Choose Our Mold and Die Adjustment Presses?
Our range of mold and die adjustment presses combines advanced engineering, robust construction, and unparalleled safety features to meet the most demanding industrial needs. Each press is custom-designed to provide precise alignment, efficient operation, and exceptional durability. With features such as movable lower tables, tilting upper tables, and programmable automation, these presses offer versatility for a wide variety of applications.
Applications and Industries Served
- Mold and Die Adjustment: Fine-tuning and aligning molds, dies, and tooling for production.
- Progressive Die Testing: Ensuring accuracy and performance before production.
- Tooling Alignment: Precision placement and testing of complex tooling systems.
- Automotive Manufacturing
- Aerospace Components
- Industrial Tooling and Machinery
- Heavy Equipment Production
Features Setting our Die Spotting Presses Apart
- Advanced Hydraulic Systems: Precision-engineered for reliability and performance under pressures up to 320 Bar.
- Programmable Automation: Store up to 300 operational recipes with integrated SIEMENS safety PLCs and touchscreen controls.
- Safety Compliance: Level IV photoelectric barriers, anti-fall mechanisms, and CE-certified safety systems ensure operator and equipment safety.
- Built for Strength and Precision: Constructed with chrome-plated cylindrical columns and robust steel structures to handle forces up to 600 TN.
Explore Our Mold and Die Adjustment Presses
Whether you’re working with progressive dies, molds, or tooling, our hydraulic presses deliver unmatched precision and reliability. Designed to enhance productivity while maintaining the highest safety standards, our presses are an essential solution for your manufacturing needs.
