High-Performance Forming and Stamping Hydraulic Presses – M/NC Series

The M/NC Series hydraulic presses are precision-engineered solutions for forming, stamping, deep drawing, blanking, and deburring applications. With a 4-column cylindrical design and capacities ranging from 50 to 300 tons, this series ensures optimal performance for demanding industrial processes.

Built with durable S355JR steel and advanced safety features, the M/NC Series meets CE standards for operational safety and efficiency.

Robust Design - S355JR Steel & High-Precision Tables

The M/NC Series hydraulic presses feature a durable electro-welded frame made from S355JR steel. Post-welding stabilization ensures unparalleled precision and parallelism, calculated using advanced finite element software. Equipped with upper and lower tables crafted from C45E steel with DIN-650 grooves, the press guarantees minimal friction and maximum durability. Four chrome-plated cylindrical columns and maintenance-free bushings further enhance performance and stability.

Advanced Safety Systems - Programmable Control Options

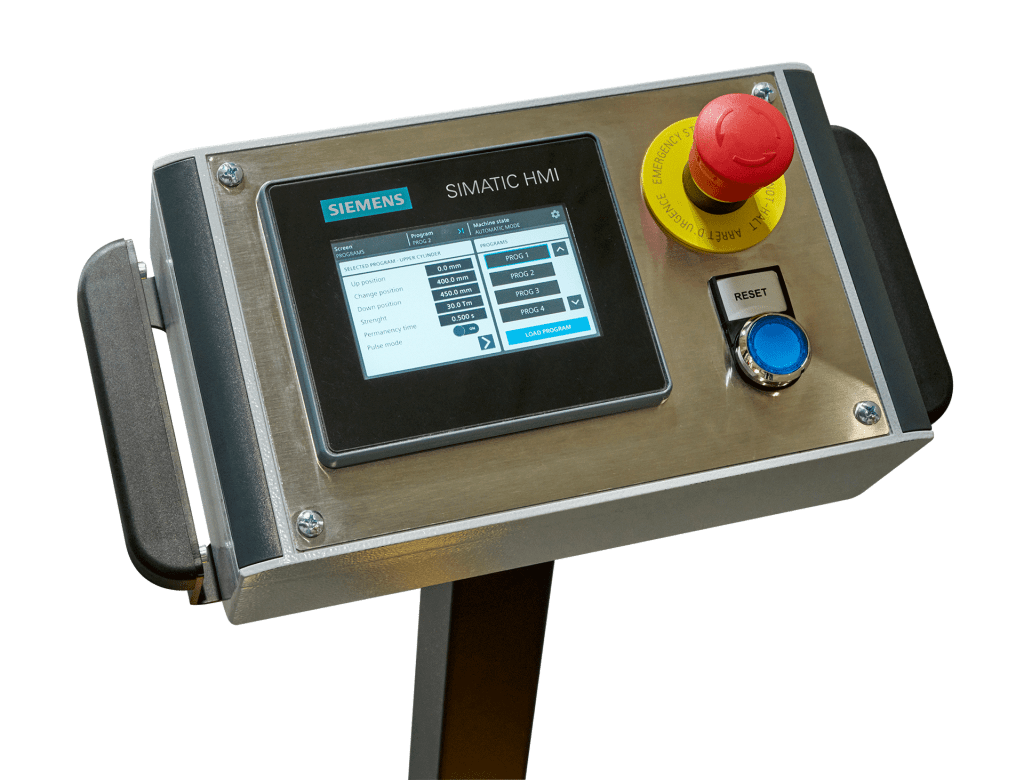

Safety and ease of operation are integral to the M/NC Series, featuring a SIEMENS safety PLC (SIMATIC S7 1200) and a 4-inch MTP-400 touchscreen. These allow for easy programming of operating modes, power settings, stroke, and dwell time. The system supports up to 99 programmable recipes, enhancing customization for varied applications. Additional safety measures include photoelectric barriers, redundant controls, and compliance with CE standards, making these presses both safe and user-friendly.



User-Friendly Electric Installation and Safety Measures

Incorporating a SIEMENS safety PLC model SIMATIC S7 1200 and a 4″ touchscreen, the CM/NC series allows for easy programming of operating modes, power, stroke, and dwell time. With a storage capacity of 99 recipes, users can customize settings for diverse applications. Safety features include type 4 PLe safety light curtains and accessible side protections with polycarbonate windows, ensuring operator safety

Optional Accessories & Configurations

  • 600 mm vertical daylight
  • 800 mm vertical daylight
  • 450 mm piston stroke
  • SIEMENS PLC mod. SIMATIC S7 1200 with 7″ touch screen mod. MPT-700
  • Hydraulic cushion
  • Hydraulic ejector
  • Cooling equipment for the hydraulic group
  • Control panel with articulated arm
  • Industry 4.0
  • Router for remote access
  • Geometry adapted to your needs

Customized Applications

To cater to specific operational needs, the CM/NC series offers optional accessories and configurations such as increased vertical light up to 800 mm, extended piston strokes, hydraulic cushions, ejectors, cooling equipment for the hydraulic group, and Industry 4.0 integration capabilities. These options provide flexibility and adaptability for various industrial requirements

Technical Specification Chart

TECHNICAL FEATURES MV-50/NC MV-80/NC MV-100/NC MV-150/NC
Power [t] 50 80 100 150
Motor Power [kW] 5.5 7.5 13 13
Throat Depth [mm] 265 290 325 375
Working Speed [mm/s] 9.9 8 9 – 4 7 – 3
Approaching Speed [mm/s] 45 34 40 28
Return Speed [mm/s] 60 48 62 40
Maximum Pressure [bar] 320 315 319 320
Piston Stroke [mm] 250 250 250 250
Lower Table [mm] 700 x 450 700 x 500 800 x 550 900 x 650
Upper Table [mm] 550 x 300 600 x 350 650 x 400 700 x 450
Max. Vertical Light [mm] 400 450 500 550
Working Height [mm] 850 850 900 950
Total Front [mm] 1,160 1,210 1,240 1,320
Total Lateral [mm] 1,290 1,460 1,590 1,750
Total Height [mm] 2,085 2,110 2,345 2,540
Weight [kg] 1,750 2,450 3,350 5,000

Industry 4.0

Industry 4.0 represents the integration of advanced digital technologies, smart automation, and interconnected systems into manufacturing processes. At Press Machinery Company International, our presses are designed to support Industry 4.0 compatibility, ensuring seamless integration with smart factory environments. This innovation empowers businesses to achieve greater efficiency, precision, and adaptability in their operations.

  • Enables smart automation and real-time monitoring.
  • Supports seamless integration into Industry 4.0-ready production lines.
  • Features remote connection routers for enhanced diagnostics and updates.
  • Optimizes production efficiency through data-driven decision-making.
  • Ensures compatibility with modern industrial IoT (Internet of Things) systems.
Industry 4.0: Revolutionizing manufacturing with intelligent, interconnected systems
