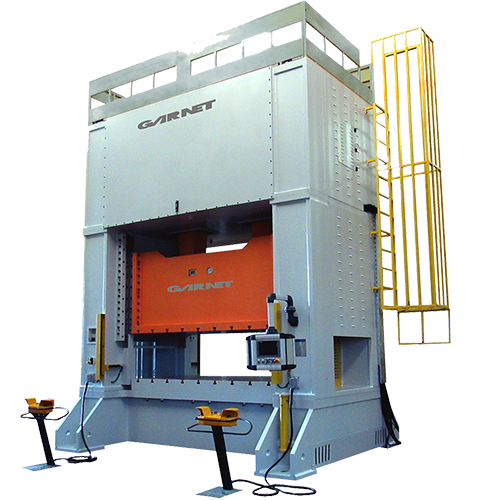

PMF-2/PMF-2L Series H-Type Mechanical Presses

Category Description

  • The PMF-2/PMF-2L Series H-Type Mechanical Presses are designed for high-performance metal forming applications. These double-column presses, with double connecting rods and fixed stroke, provide precision and strength across a wide range of industries, including automotive, aerospace, and railway manufacturing. Built with robust engineering, these presses deliver unmatched durability and operational efficiency.

Key Features

  • Constructed from stabilized S355JR steel for durability and precision.
  • Variable stroke capability for versatility in metal forming operations.
  • 6 prismatic guides for enhanced rigidity and stability under load.
  • Double reduction with counter-rotating eccentric gears for high energy and long strokes.
  • Centralized automatic lubrication system with programmable settings.

Overload and Compensation

  • Equipped with an overload protection unit to safeguard machine components and tools.
  • Features a safety valve that releases oil to maintain optimal load settings.
  • Compensation is provided by two pneumatic cylinders for effective balancing of the ram and dies.

Clutch and Brake System

  • An electro-pneumatic clutch-brake system with a double-body safety solenoid valve ensures precision.
  • Pneumatic system includes a compensation tank, regulator-lubricator filter, control pressure switch, and safety valve.

Applications

  • Automotive: Stamping, deep drawing, and forming car parts.
  • Aerospace: Precision forming and shaping of aerospace components.
  • Railway: Metal forming and assembly of railway components.
  • General Metal Forming: High-accuracy stamping and cutting tasks.

Electrical Installation and Safety

  • Selectable operation modes: manual, semi-automatic, or automatic via the control panel.
  • Operated using a two-hand push button or a low-voltage electric pedal.
  • Safety features include practicable side guards and category IV photoelectric barriers.
  • Fully compliant with CE safety and health regulations.

Standard Features

  • Pneumatic clutch
  • Dual safety valve
  • Two-hand control
  • Electric pedal control
  • Automatic centralized lubrication
  • Oil-bath gears
  • Automatic ram adjustment
  • Shut height indicator
  • Mechanical cam limit sensor
  • Magnetic cam limit sensor
  • Speed variator
  • Programmable PLC (automaton)
  • Touchscreen display
  • Front and rear photoelectric barriers

Optional Accessories

  • Speed variator
  • Pneumatic or hydraulic ejector or cushion
  • Auxiliary lower table
  • Quick die change system
  • Digital force control

Technical Specifications

TECHNICAL FEATURES PMF-2 200 PMF-2L 200 PMF-2 300 PMF-2L 300 PMF-2 400 PMF-2L 400 PMF-2 500 PMF-2L 500
Press Capacity [ton] 200 200 300 300 400 400 500 500
Stroke Per Minute 30-40 30-40 30-40 30-40 30-40 30-40 25-35 25-35
Nominal Tonnage Height [mm] 8 7 8.5 7.5 8.5 7.5 9 8
Stroke Adjustment [mm] 200 250 200 200 200 250 200 250
Max Closed Mould Height [mm] 550 550 600 600 600 600 600 600
Table - Ram Distance [mm] 750 800 750 800 800 850 800 850
Ram Adjustment [mm] 0-120 0-120 0-120 0-140 0-120 0-140 0-120 0-140
Table Dimension [mm] 1300x2500 1300x2800 1300x2500 1300x2800 1300x2500 1300x2800 1300x2500 1300x2800
Ram Dimension [mm] 1300x2500 1300x2800 1300x2500 1300x2800 1300x2500 1300x2800 1300x2500 1300x2800
Motor Power [kW] 22 30 30 37 37 45 45 55
DIMENSIONS PMF-2 200 PMF-2L 200 PMF-2 300 PMF-2L 300 PMF-2 400 PMF-2L 400 PMF-2 500 PMF-2L 500
H1 [mm] 5100 5300 5400 5550 5900 5950 6150 6400
H2 [mm] 1050 1050 1100 1100 1100 1100 1100 1100
W1 [mm] 3600 3900 3700 3900 3600 3900 3600 3900
W2 [mm] 850 950 850 950 1000 1000 1000 1000
D1 [mm] 2200 2400 2500 2600 2500 2600 2500 2600
D2 [mm] 2200 2300 2200 2400 2300 2400 2300 2400
Industry 4.0: Revolutionizing manufacturing with intelligent, interconnected systems

Industry 4.0

Industry 4.0 represents the integration of advanced digital technologies, smart automation, and interconnected systems into manufacturing processes. At Press Machinery Company International, our presses are designed to support Industry 4.0 compatibility, ensuring seamless integration with smart factory environments. This innovation empowers businesses to achieve greater efficiency, precision, and adaptability in their operations.

  • Enables smart automation and real-time monitoring.
  • Supports seamless integration into Industry 4.0-ready production lines.
  • Features remote connection routers for enhanced diagnostics and updates.
  • Optimizes production efficiency through data-driven decision-making.
  • Ensures compatibility with modern industrial IoT (Internet of Things) systems.

PMF-2/PMF-2L Series H-Type Mechanical Presses - Why?

Our PMF-2/PMF-2L Series H-Type Mechanical Presses are built to deliver superior performance, reliability, and safety in high-demand metal forming applications. With advanced engineering and a focus on precision, these presses are the ideal choice for demanding industries.

Key Advantages:

  • Precision Engineering: Constructed from S355JR steel and designed using finite element analysis, these presses offer unparalleled durability and minimal deformation.
  • Double Connecting Rods: Provide enhanced stability and precision for heavy-duty tasks.
  • Safety Assured: Includes category IV photoelectric barriers, overload protection, and redundant safety systems for operator security.
  • Customizable Options: Offers a range of optional accessories like quick die change systems and hydraulic cushions to tailor the machine to your specific needs.
  • Long-Term Efficiency: Equipped with a centralized automatic lubrication system and durable components, reducing downtime and maintenance costs.

The PMF-2/PMF-2L Series ensures exceptional results for industries like automotive, aerospace, and railway manufacturing, making it the go-to solution for precision and high-volume metal forming needs.
