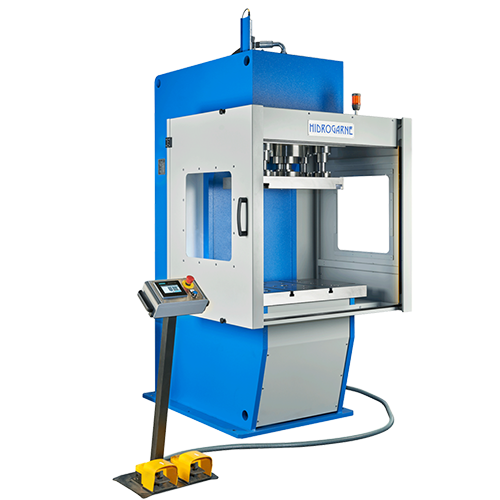

High-Precision C-Frame Hydraulic Presses – CM-NC Series: The CM-NC Series hydraulic presses deliver unmatched precision and durability, designed for applications such as deep drawing, stamping, die-cutting, and forming. With power capacities ranging from 50 to 150 tons, these presses are perfect for both standalone use and integration into automated production lines. Featuring advanced hydraulic technology operating at pressures below 320 BAR, the CM/NC Series ensures extended system life and optimal performance.
The CM-NC Series features an electro-welded S355JR steel structure that is stabilized and precision-machined post-welding for guaranteed parallelism and structural integrity. Each press is equipped with C45E steel upper and lower tables featuring DIN 650 slots, supported by 50 mm cylindrical lateral guides and maintenance-free bimetallic bushings, ensuring reliable performance with minimal friction.
Durable Hydraulic Systems for Consistent Performance: A double-acting cylinder made from seamless cold-drawn tubing and paired with a chrome-plated piston ensures wear-resistant operation. The motorized hydraulic unit operates with dual speeds, including an automatic fast-speed disconnection system, while a decompression valve enhances safety and reliability.
The system comes equipped with a pivoting control panel featuring an NC Siemens MTP-700 touchscreen. This interface allows users to program settings such as power, cylinder stroke, and operating speeds. It includes storage for up to 300 working cycle configurations.
Both electrical and hydraulic operations are designed to be redundant and self-regulated, featuring an additional safety block and automated safety mechanisms. The system ensures compliance with safety standards by including verification and certification of proper functioning and maintaining safe distances for photocells.
The press operates via low-voltage electric pedals and features enhanced safety measures, including side guards made of polycarbonate, interior LED lighting, and advanced level IV photoelectric sensors on the front.
Optional features include a hydraulic cushion or ejector for added functionality. The system is provided with a glycerin pressure gauge (displayed in tonnes), hydraulic oil, and a detailed instruction manual. All components meet the strict health and safety standards outlined in the EC regulations.
Enhance your CD-50 press with optional features such as extended vertical light options (600mm or 800mm), a hydraulic ejector, Industry 4.0 compatibility, and remote access capabilities. These accessories allow customization to meet your unique operational needs.
| TECHNICAL FEATURES | CM-50/NC | CM-80/NC | CM-100/NC | CM-150/NC |
|---|---|---|---|---|
| Power [t] | 50 | 80 | 100 | 150 |
| Motor Power [kW] | 5.5 | 7.5 | 13 | 13 |
| Throat Depth [mm] | 265 | 290 | 325 | 375 |
| Working Speed [mm/s] | 9.9 | 8 | 9 – 4 | 7 – 3 |
| Approaching Speed [mm/s] | 45 | 34 | 40 | 28 |
| Return Speed [mm/s] | 60 | 48 | 62 | 40 |
| Maximum Pressure [bar] | 320 | 315 | 319 | 320 |
| Piston Stroke [mm] | 250 | 250 | 250 | 250 |
| Lower Table [mm] | 700×450 | 700×500 | 800×550 | 900×650 |
| Upper Table [mm] | 550×300 | 600×350 | 650×400 | 700×450 |
| Max. Vertical Light [mm] | 400 | 450 | 500 | 550 |
| Working Height [mm] | 850 | 850 | 900 | 950 |
| Total Front [mm] | 1,160 | 1,210 | 1,240 | 1,320 |
| Total Lateral [mm] | 1,290 | 1,460 | 1,590 | 1,750 |
| Total Height [mm] | 2,085 | 2,110 | 2,345 | 2,540 |
| Weight [kg] | 1,750 | 2,450 | 3,350 | 5,000 |
